Custom Balancing Workholding

Our customer provides Dynamic Balancing Machines and Services. Inspecting and balancing: torque converters and rotating driveline parts up to 10,000lbs.

Brief

The request is for a chuck that can expand to grip the inner diameter of female splined shafts, while it rotates on their balancing machine.

The challenge is to improve their previous solution. They were previously using a “homemade” fixture. It had a slip-fit without the expanding capability to grip the inner diameter of the part.

Custom Northfield Model 450 Sliding-Jaw Air Chuck (0.0001” TIR)[/caption]

Northfield Solution

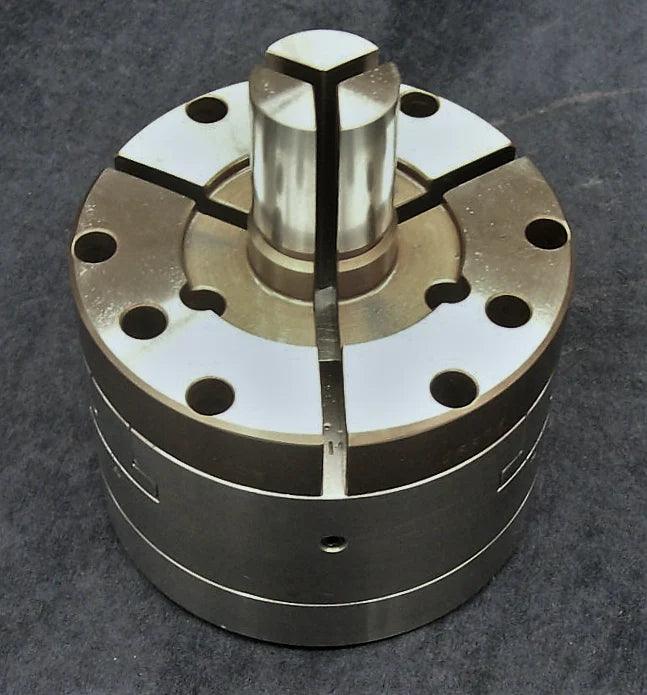

Shown above is our Northfield Model 450 Sliding-Jaw Air Chuck (0.0001” TIR) with special ID-gripping Top Jaws. Additionally, an integral Axial Locator increases the speed of part change over and accurate part seating before starting the operation.

Result

This chucking arrangement solves their problem. It provides a reliable and repeatable method for them to grip their parts while accommodating the part’s tolerance variations.

If you have a similar custom project, reach out to our team. Contact Northfield
