Custom Workholding Swivel Jaws
Introduction:
In this blog post, we explore the implementation of custom workholding swivel jaws, the challenges they address, and how Northfield Precision has delivered this solution to improve their customers machining operations.
Brief:
Custom workholding was required to allow for the accurate clamping of parts with irregular shapes or out-of-round features, ensuring consistent alignment and minimizing deformation. Northfield Precision's expertise lies in crafting precision workholding solutions tailored to the specific needs of customers, offering unparalleled levels of accuracy and repeatability.
The Workholding Challenge:
One of the primary challenges in precision machining is the clamping of parts with non-standard geometries. Traditional fixed jaw chucks often struggle to accommodate such parts without compromising accuracy. Additionally, the deformation caused by rigid clamping methods can lead to inaccuracies in the machined components.
Northfield Precision Custom Solution:
[caption id="attachment_22648" align="aligncenter" width="481"]

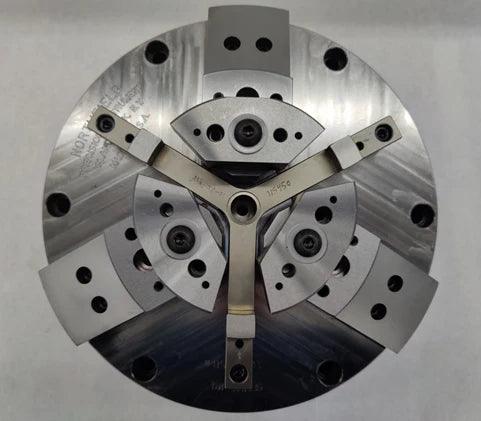

Swivel Jaw - Model 1000W Sliding-Jaw Air Chuck[/caption]
Northfield Precision's custom workholding swivel jaws address these challenges head-on. By incorporating swiveling capabilities into the jaw design, these chucks can adapt to the unique contours of the workpiece, ensuring optimal contact and alignment. This innovative approach minimizes the spring-back effect associated with clamping irregular parts, thereby enhancing overall machining precision.
The chuck has a customized coolant delivery system, a custom, changeable coolant nozzle that directs coolant toward the cutting tool. This evacuates chips and keeps the cutting tool cool while machining, therefore maintaining accuracy.
Additionally, the Swivel Pad Subjaws have two swivel bolt locations. Allowing for easy change over to a new set of Swivel Pads. Designed to accommodate a larger different Inner Diameter that wouldn’t be possible with only one swivel bolt location.
Result of Swivel Jaws:
The implementation of custom workholding swivel jaws from Northfield Precision has revolutionized machining operations for countless customers. By allowing for precise clamping without distorting the workpiece, these solutions enable the machining of complex geometries with unparalleled accuracy. Customers benefit from reduced scrap rates, improved part quality, and enhanced productivity, ultimately translating into significant cost savings and a competitive edge in the market.
Conclusion:
In precision machining, every detail matters. Custom workholding swivel jaws highlight the possibilities of offering a tailored solution to the challenges of machining irregular parts.
With Northfield Precision's expertise in crafting precision workholding solutions, manufacturers can confidently tackle even the most intricate machining tasks, secure in the knowledge that their components will meet the highest standards of accuracy and quality.
Do you have a part that required custom work holding? Give us a call now.
